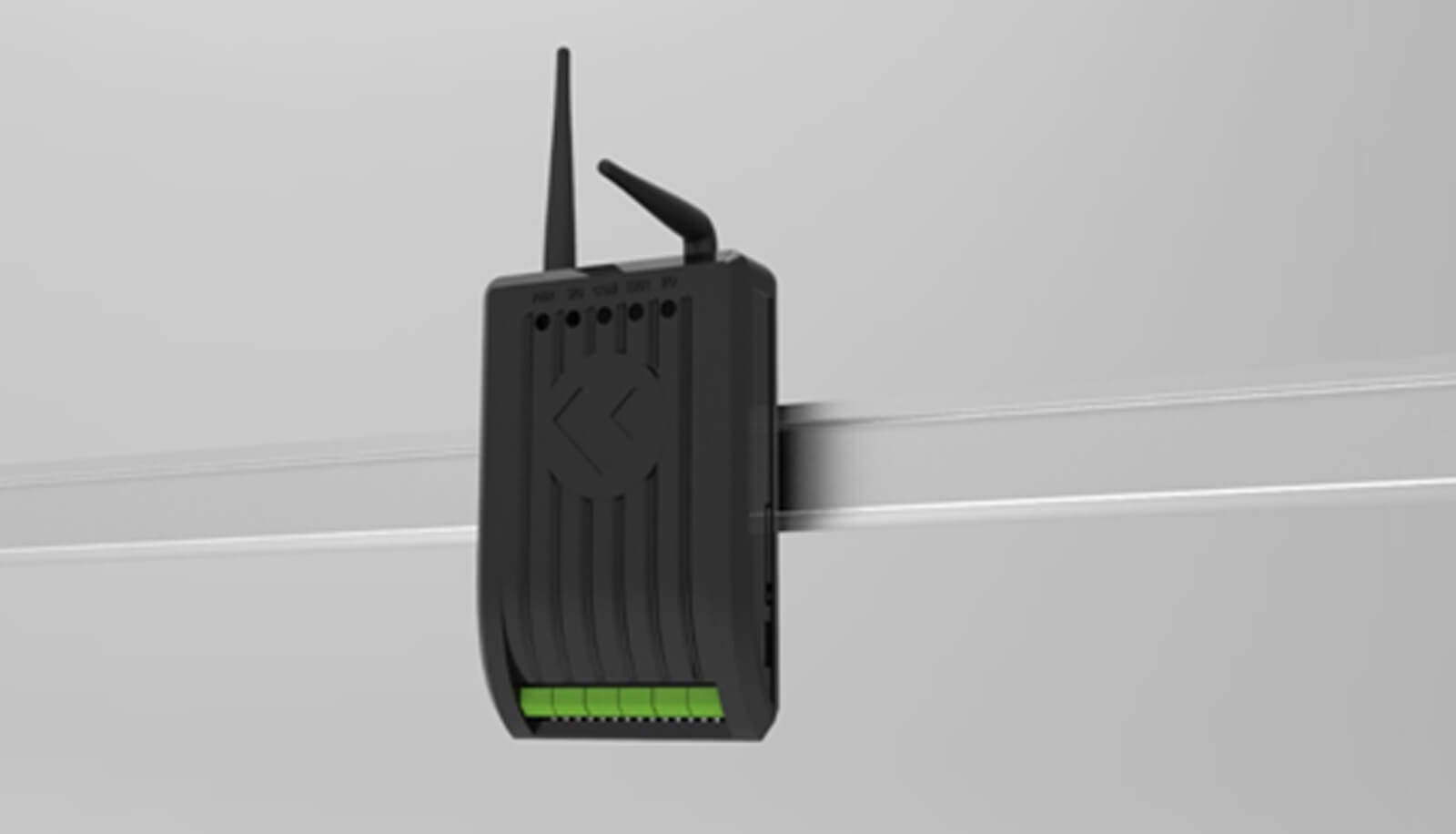

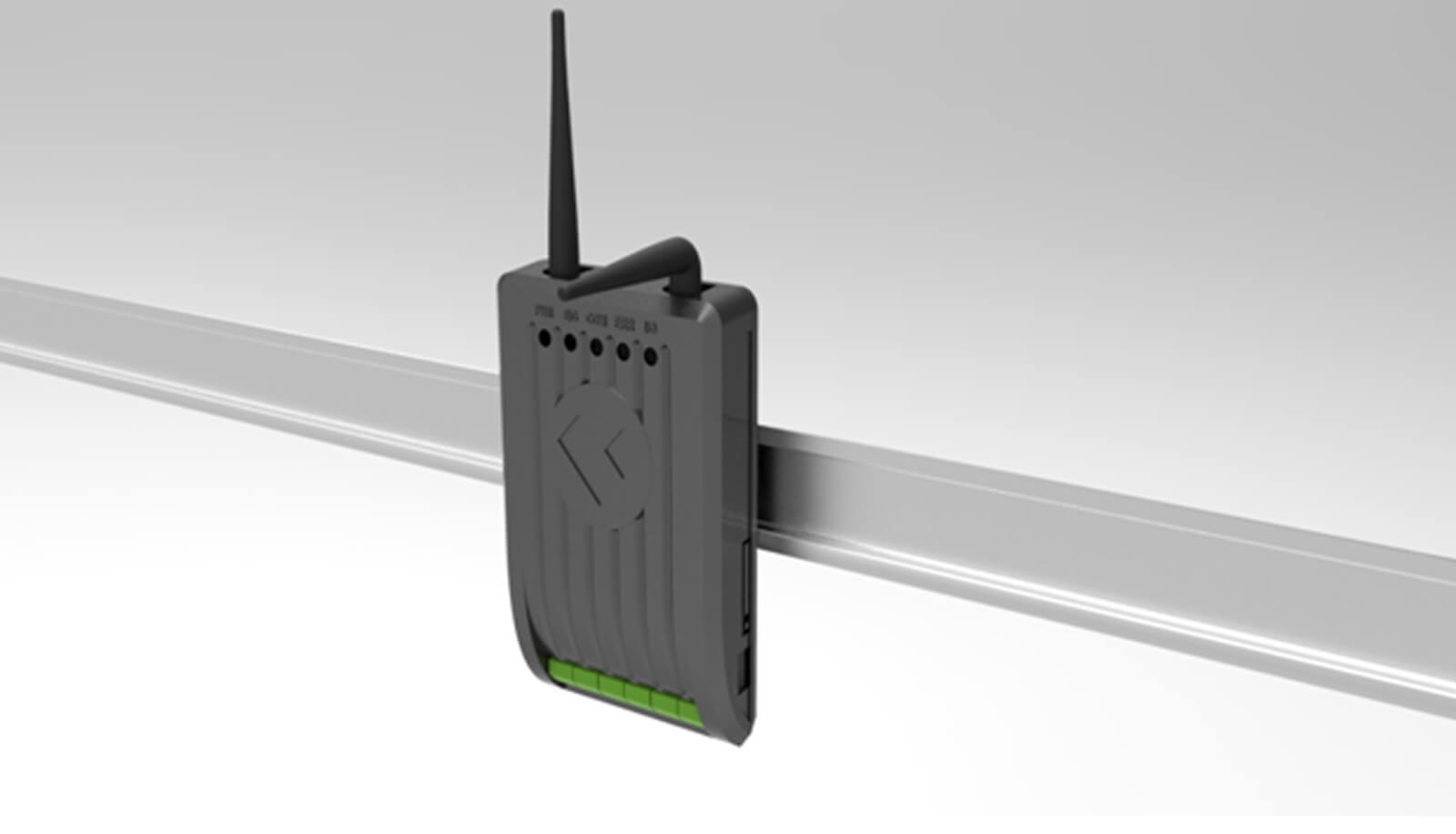

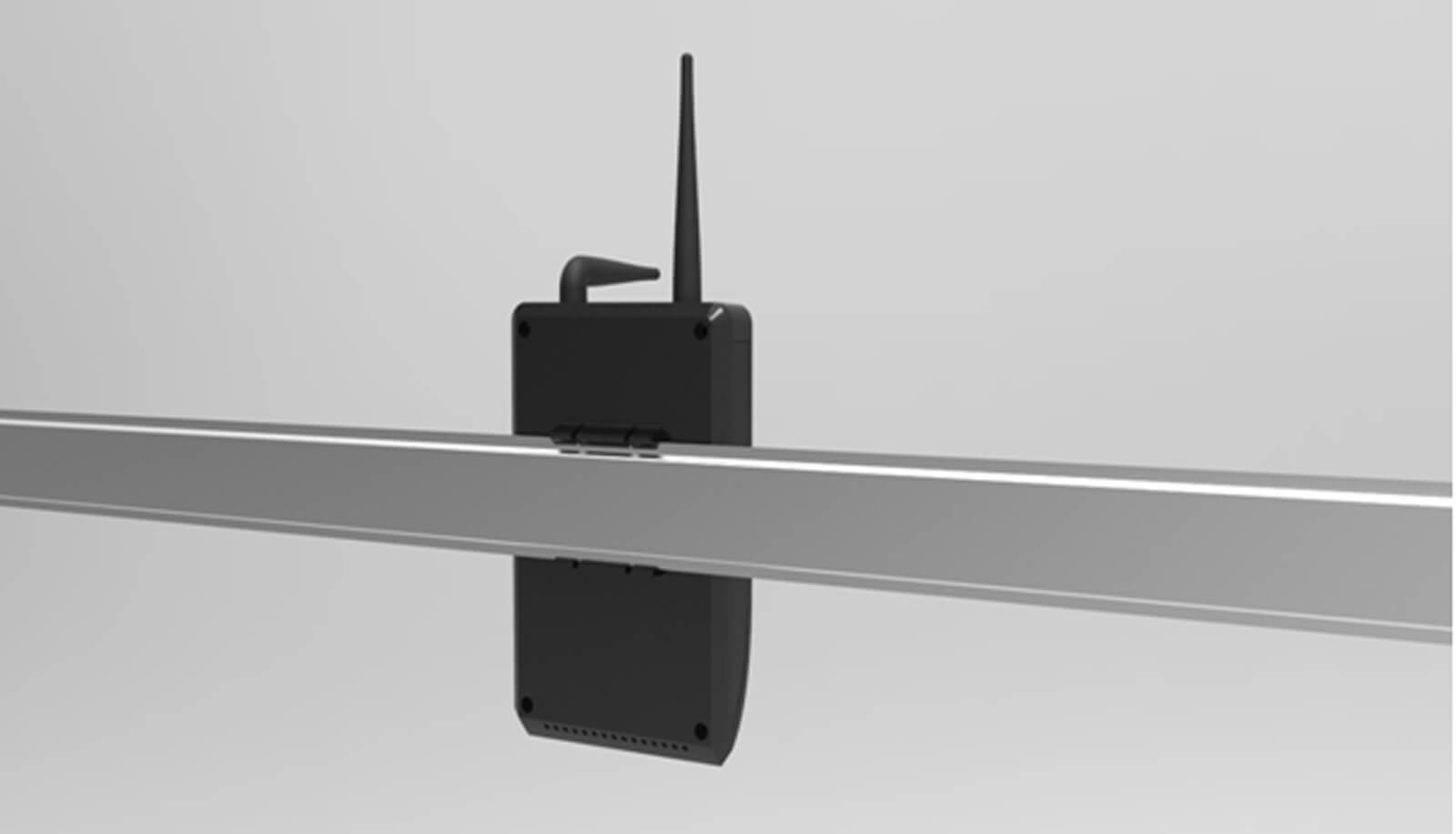

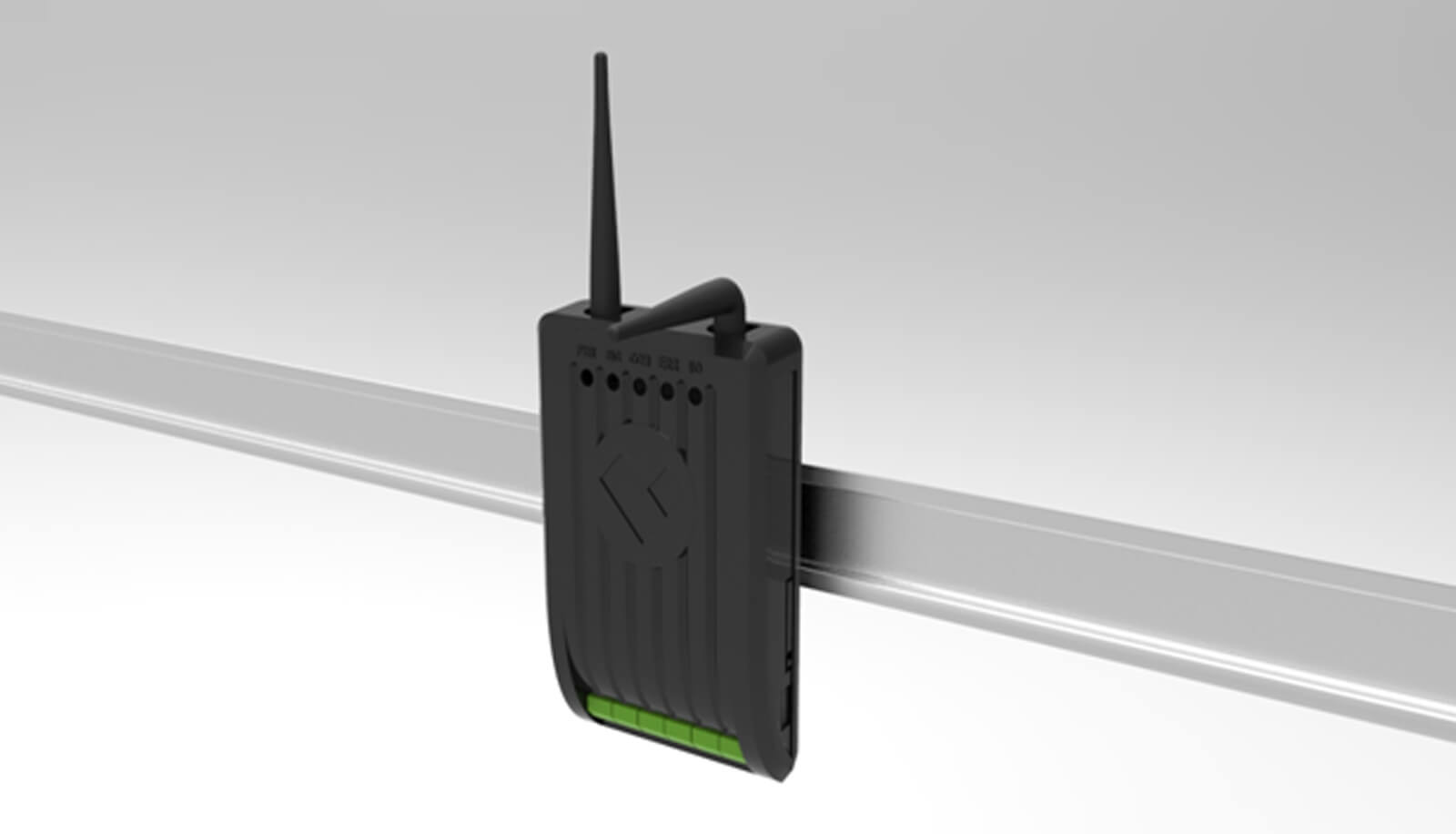

Universal Data Logger
Universal Data Logger
Don’t have time to monitor or control critical manufacturing process? Do you want to improve manufacturing efficiency via remote monitoring & Controlling system? We have a universal data logger that can extend your offline system to cloud connected system. Universal data logger measures critical industrial parameters and sends data on cloud platform. Customer can monitor required parameters on cloud & mobile applications. User can set critical warning levels and system automatically takes action defined by users. GSM Connectivity improves the reach of system on global network. It makes manufacturing process hassle free & productive.
Feature
- Input Voltage range is 12V-24VD.C, 1.5A via Regulated Source.
- Power Distribution from Panel is 24VD.C via 2 Pin Power Connector.
- Module supports 1 MODBUS terminal.
- Module Supports 2 Digital Output Terminal for Connecting External Relay etc.
- Module Supports 2 4-20mA type signals for ADC Purpose.
- Module Supports RS232 Signal for Communication.
- Module Supports Digital Input Signals from external Component like switches, Digital Sensor.
- Network Strength, Communication Status, Error Indication.
- SIMCOM SIM808 MODULE, GSM850MHZ, EGSM900MHZ, DCS1800MHZ, PCS 1900MHZ.
- GPRS+GPS SUPPORTED.
- In Built TCP/IP STACK SUPPORTED, TCP, HTTP, FTP, MQTT protocols support.
- Two Different Antennas for GSM and GPS Connectivity.
- MQTT Protocol via 2G-3G services of SIM Card.
- HTTP Protocol via 2G-3G services of SIM Card.
- Data Upload and download via publishing & subscribing method on server.
